All Conveyor Components

gravity rollers and bearings

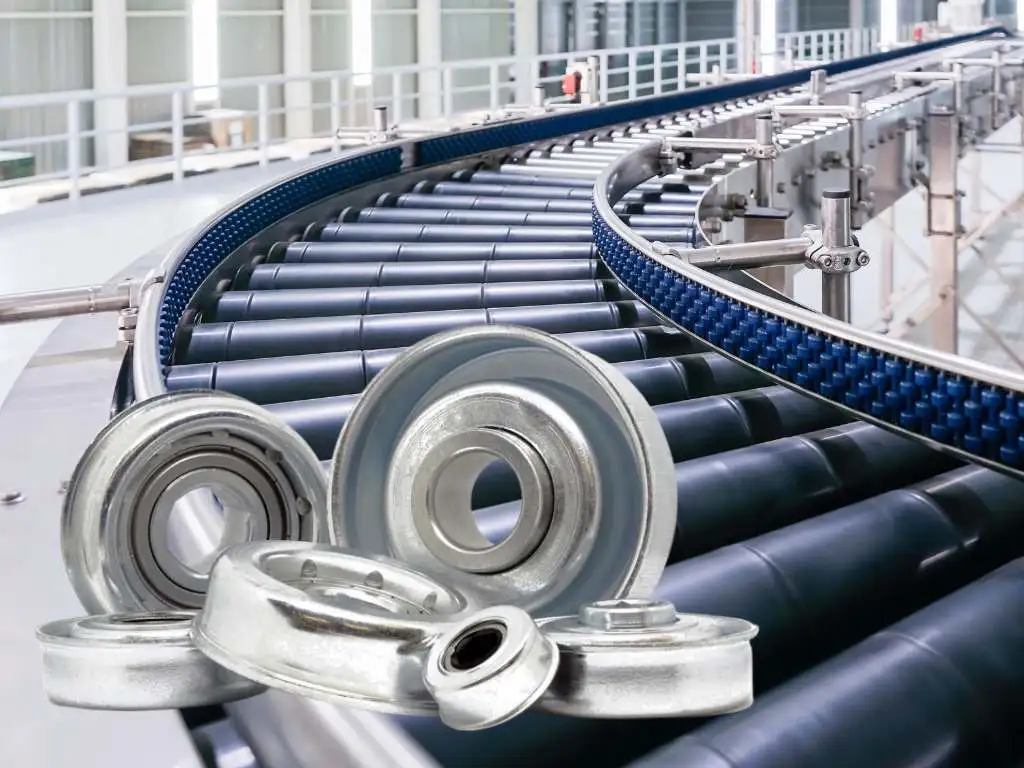

Gravity Rollers and Bearings

Gravity Roller Bearings

  • 25dia – 25,4 x 1,2mm tube 8mm bore
  • 32dia – 32,1 x 1,2mm tube 8mm bore
  • 38dia – 38,1 x 1,2mm tube 11mm bore
  • 50dia – 50,8 x 1,6mm tube 11mm bore
  • 60dia – 60,3 x 2,0mm tube 13mm bore
  • 63dia – 63,5 x 2,5mm tube 13mm bore
  • 76dia – 76,2 x 3,0mm tube 20mm bore
  • 89dia – 88,9 x 3,0mm tube 20mm bore

Rollers Made to Order

  • 25dia
  • 32dia
  • 38dia
  • 50dia
  • 60dia
  • 63dia
  • 76dia
  • 89dia
  • Gravity rollers Stainless/Mild Steel/Galvanised finish
    • nylon-roller-components-and-sprockets

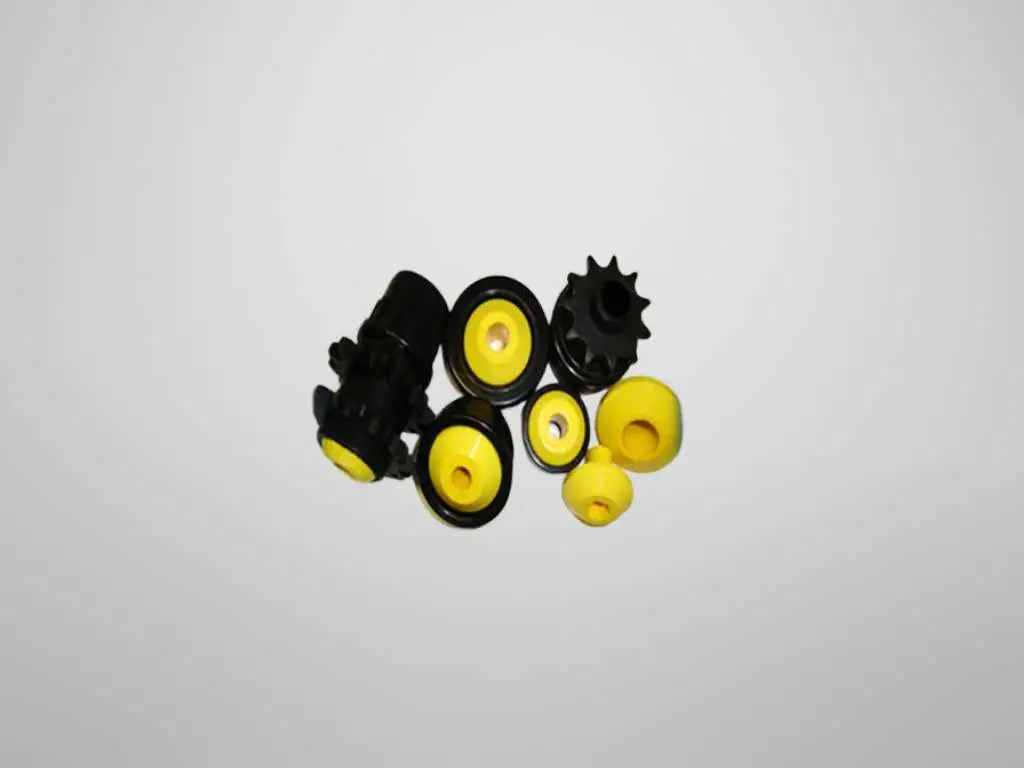

    Nylon Roller Components and Sprockets

    Nylon Housings/Dust covers and Sprocket

    • 25dia – 25,4 x 1,2mm tube 8mm bore
    • 32dia – 32,1 x 1,2mm tube 8mm bore
    • 38dia – 38,1 x 1,2mm tube 11mm bore
    • 50dia – 50,8 x 1,6mm tube 11mm bore
    • 60dia – 60,3 x 2,0mm tube 13mm bore
    • 63dia – 63,5 x 2,5mm tube 13mm bore
    • 76dia – 76,2 x 3,0mm tube 20mm bore
    • 89dia – 88,9 x 3,0mm tube 20mm bore

    Rollers made to order

  • 38dia – 38,1 x 1,6mm tube
  • 50dia – 50,8 x 1,6mm tube
  • 60dia – 60,3 x 2,0mm tube
  • 63dia – 63 x 2,0mm tube
  • 63dia – 63,5 x 2,0mm tube (20mm bore)
  • 76dia – 76,2 x 3,0mm tube
  • 89dia – 88,9 x 3,0mm tube
  • 11tooth simplex, 14tooth simplex and 14tooth duplex fixed/friction nylon sprockets
  • 14tooth simplex and 14tooth duplex fixed/friction steel sprockets
  • 15tooth duplex x 76dia and 18tooth duplex x 89dia fixed steel sprockets 5/8inch pitch
  • 8mm/10mm/11hex/12mm/14mm/
  • 16mm and 20mm dust covers for housings and sprockets
    • pvc-rollers-for-conveyor

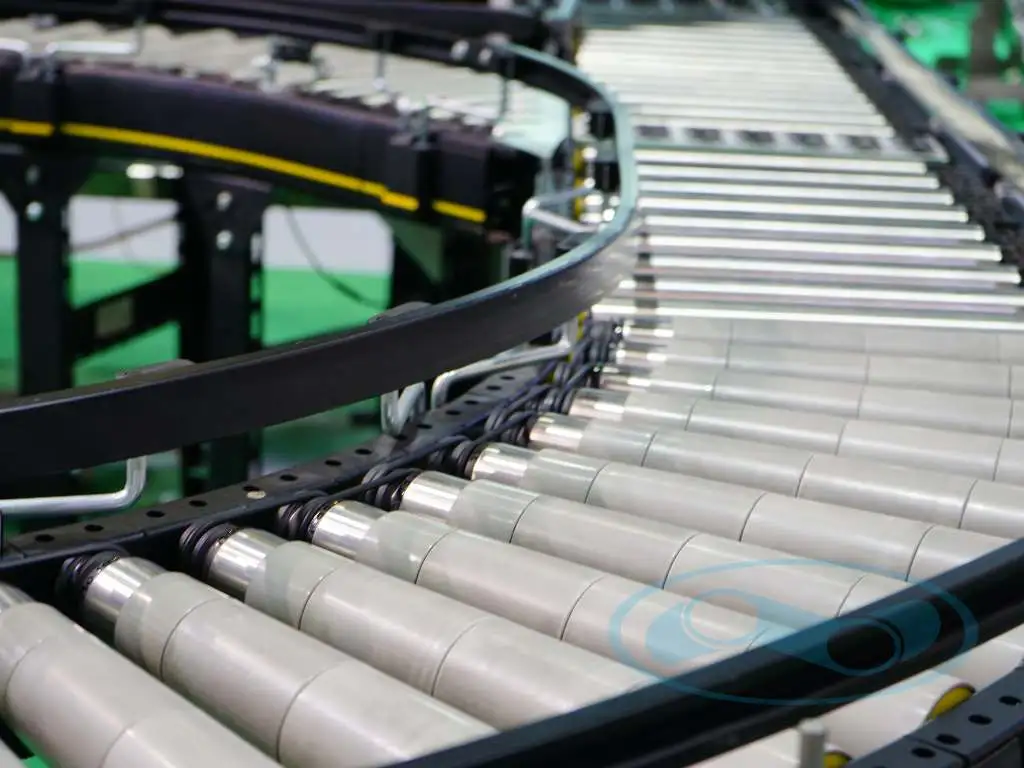

    PVC Bearings and Pipe

    PVC Bearings and Pipe

    • 20dia – 20 x 1.5mm tube 6mm bore
    • 30dia – 30 x 1.8mm tube 8mm bore
    • 50dia – 50 x 2.8mm tube 10mm bore

    Rollers Made to Order

  • 20dia, 30dia and 50 dia PVC Rollers
    • Troughing Idler Components

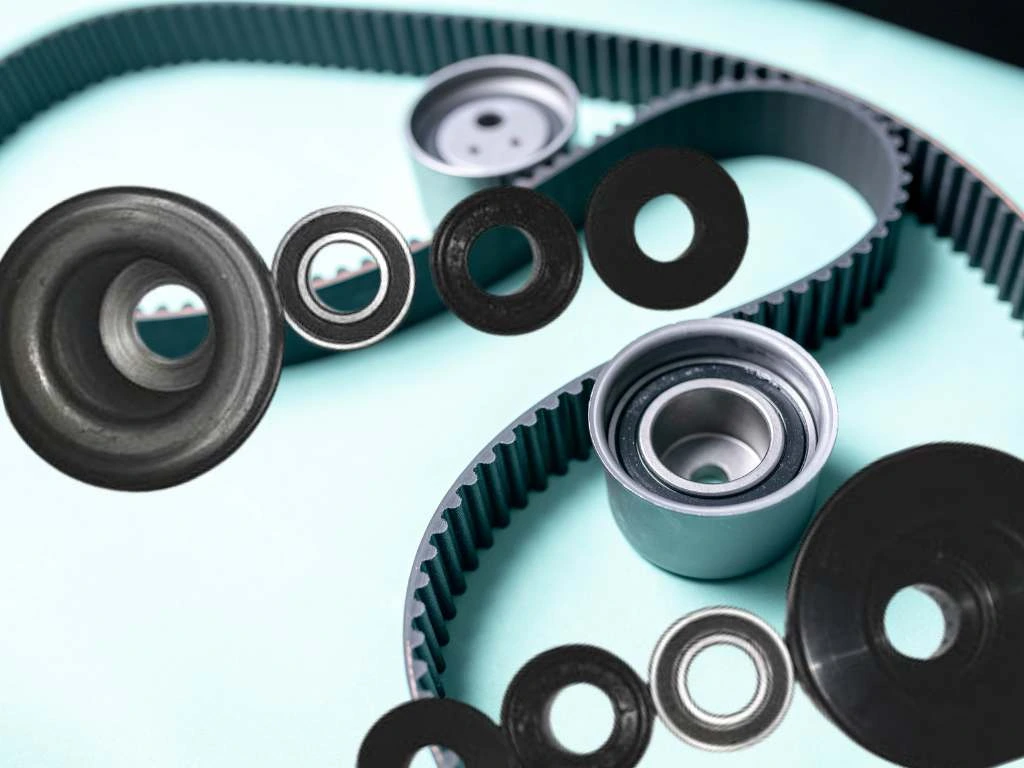

    Troughing Idler Components

    • 101dia – 101 x 3,5mm tube 20/25mm bore – Nylon and Steel
    • 127dia – 127 x 3,8mm tube 25mm bore – Nylon and Steel
    • 152dia – 152 x 4,0mm tube 25/30/40mm bore – Steel

    Troughing Idlers and Pulleys made to order

  • 101dia, 127dia, 152dia Troughing Idlers
  • 220dia, 324dia Pulleys Mild Steel, Galvanised, Rubber lagged
    • conveyor-taper-segments

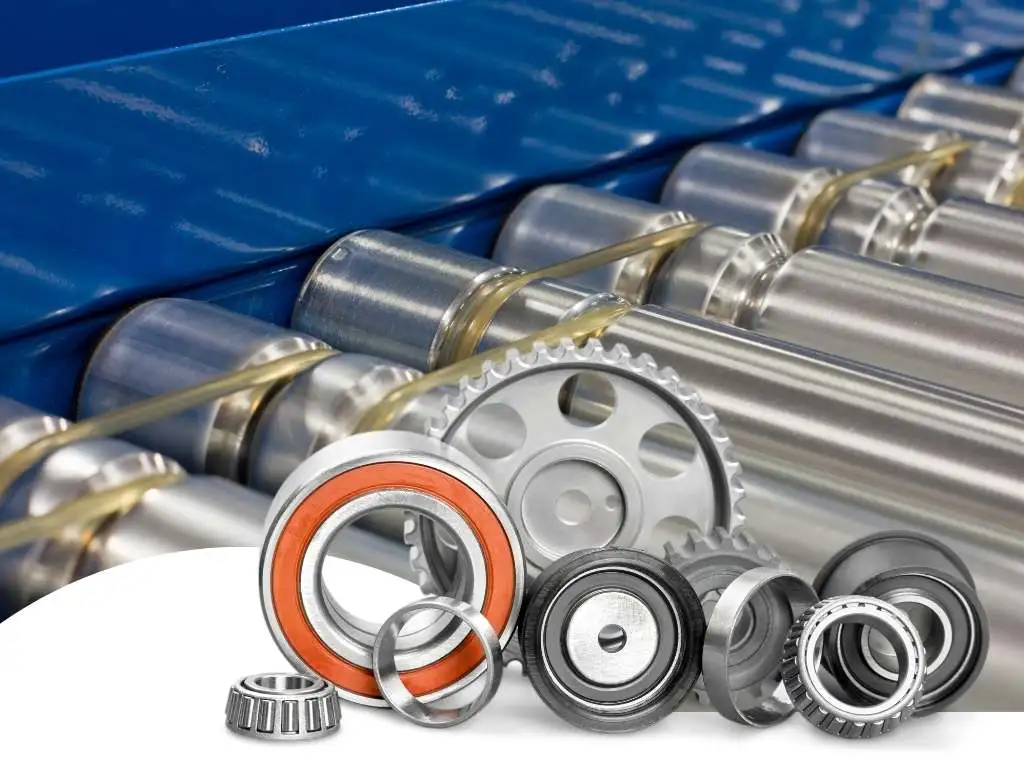

    Taper Segments

    Taper roller segments

  • 14 segments available 100mm long each Fit over a 50,8 x 1,6mm wall pipe

    • Taper Rollers made to order

  • 50diameter complete with steel or nylon sprockets.
    • conveyor-wheels-and-roller-track

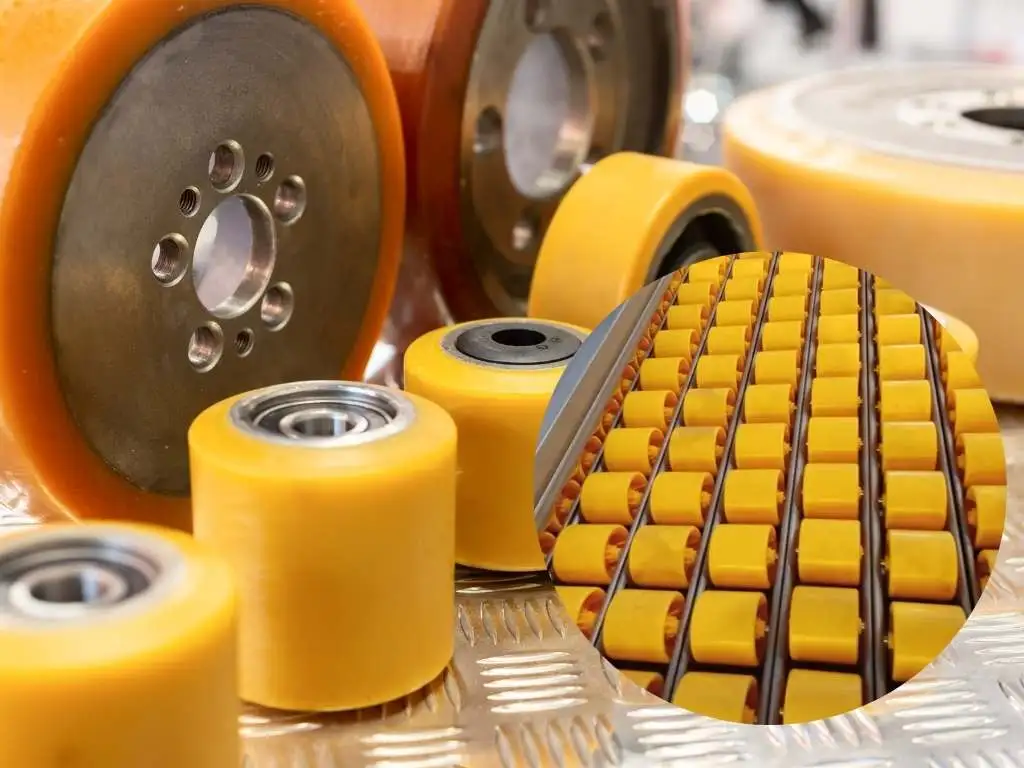

    Wheels and Roller Track

    Flow Wheels

  • 50diameter x 10/12/14mm bore

    • Skate Wheels

  • 38diameter x 8mm bore steel
    50 diameter x 8mm bore steel and 50diameter x 8mm bore plastic

    • Roller Tracks

  • Yellow wheels – light duty – 28dia x 33mm pitch
    Black wheels – medium duty – 33dia x 37mm pitch
    • ball-transfer-units

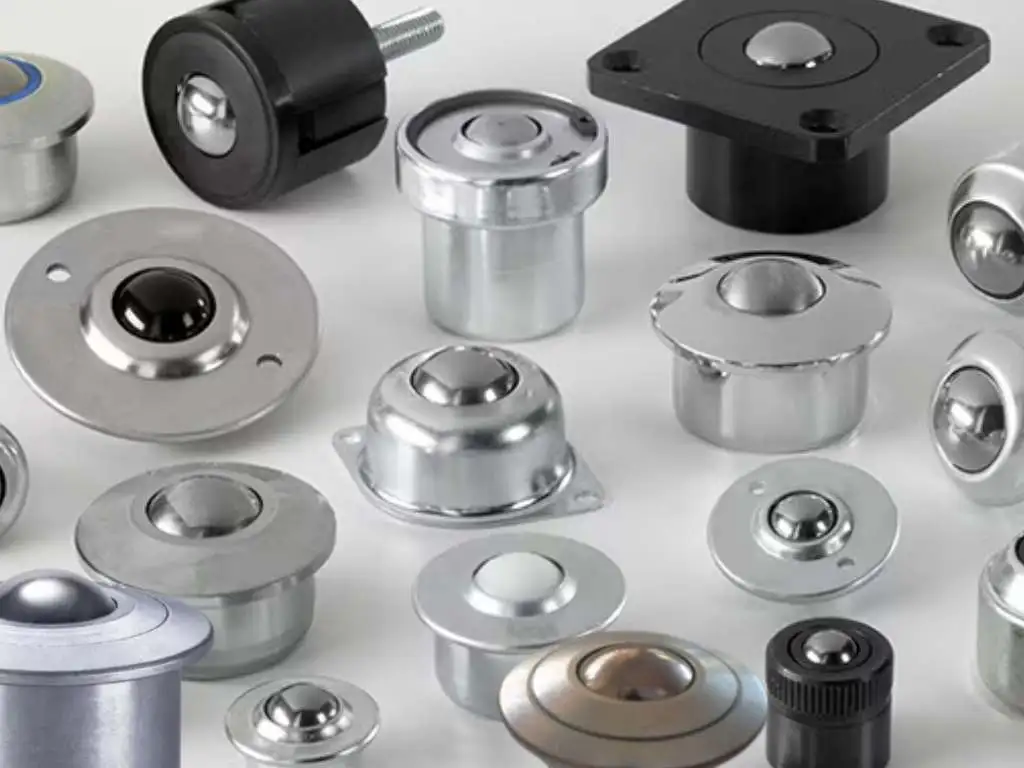

    Ball Transfer Units

    Types of ball units

    • Flat: 1 inch ball. 25kg load – 3 hole flange
    • Dome: 1 inch ball. 25kg load – 2 hole flange
    • Dome Nylon / St St:1 inch ball. 25kg load – 2 hole flange – st st ball, nylon housing
    • Heavy Duty:30mm ball. 250kg load – pallet handling
    steel-ball-transfer-units

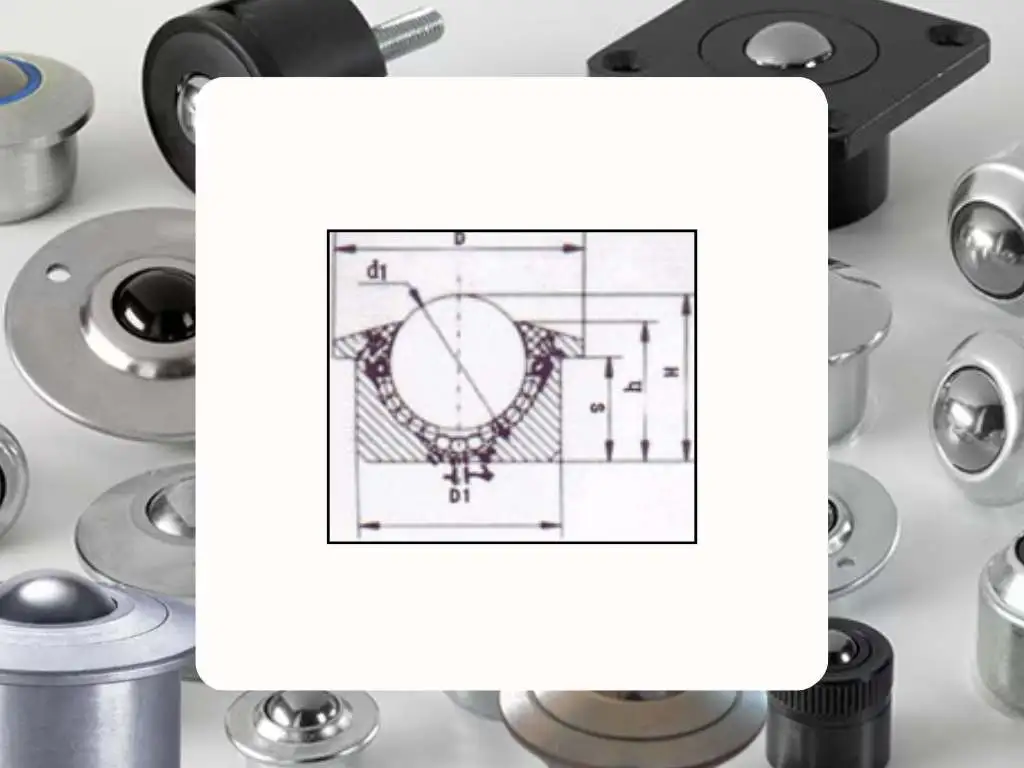

    Steel (Hardened) Heavy Duty Ball Unit

    Great for Pallet Handling applications.
    D = 54.6mm d1 = 30 mm
    D1 = 44.5mm h = 31mm
    H = 37mm S = 23mm
    Load Capacity per Ball Unit – 250 kg

    nylon-ball-transfer-unitsloading=

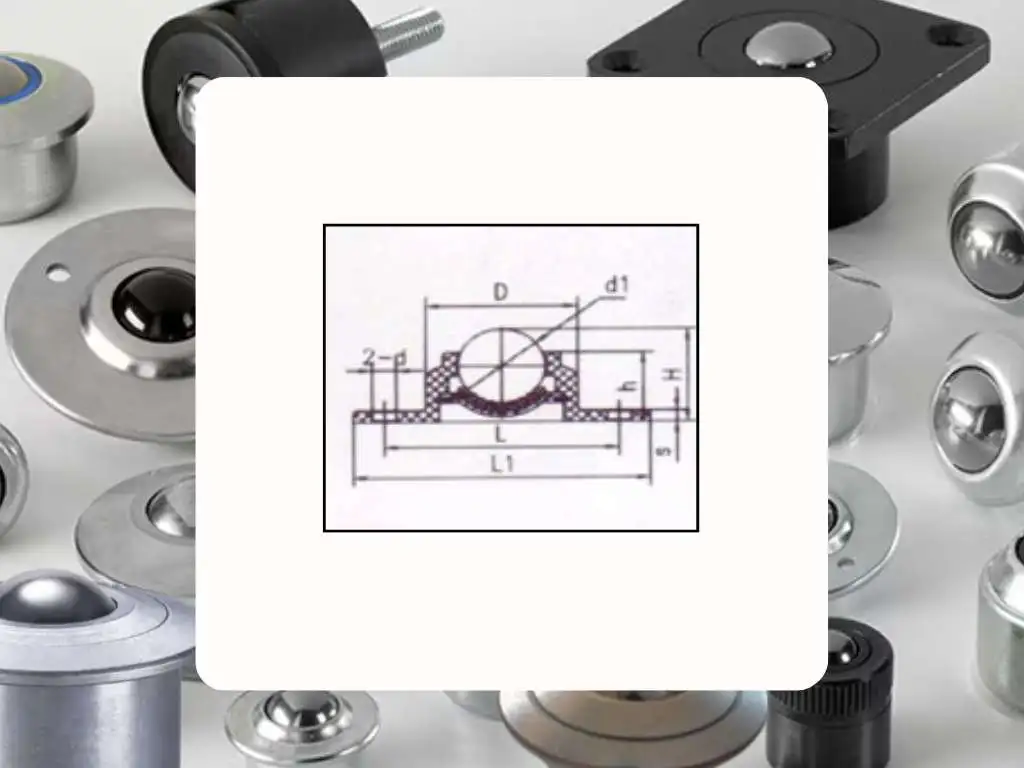

    Nylon Housing with stainless steel ball (Grade 420)

    d = 7mm d1 = 25.4
    D = 44mm h = 24mm
    H = 32mm L = 68mm
    L1 = 86mm S = 4mm
    Load Capacity per Ball Unit – 25kg

    How to Choose a Ball Transfer Unit

    Maximum Loading Capacity = (weight of article) / 3 or 9.
    Flat Surfaces: Load / 3 = Minimum unit load
    Uneven Surfaces: Load / 9 = Minimum unit load
    Maximum Spacing = (article width) / 3.5; (article length) / 3.5/p>

    conveyor-components-springs

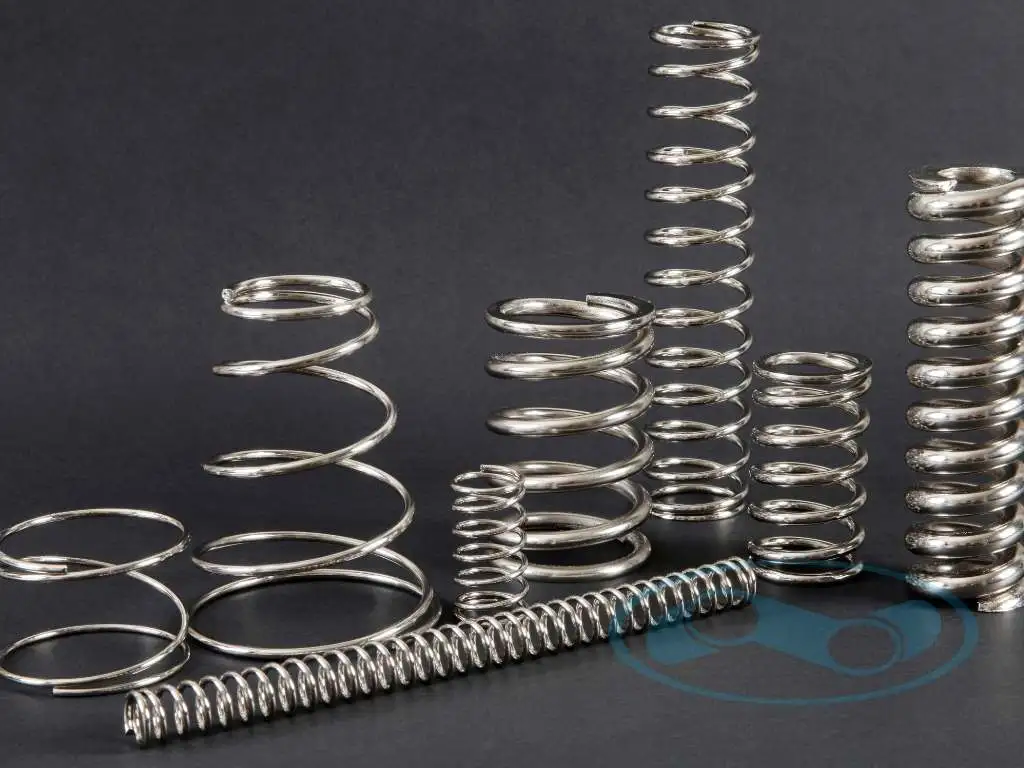

    Springs

    Variations

    • 6mm stainless steel – 6mm x 0.9mm
    • 8mm stainless steel – 8mm x 1.2mm
    • 11mm stainless steel – 11mm x 1.2mm
    • 13mm stainless steel –13mm x 1.4mm
    • 13hex/14mm stainless steel – 14mm x 1.6mm
    • 16mm stainless steel – 16mm x 1.6mm
    • 6mm galvanised – 6mm x 1.2mm
    • 8mm galvanised – 8mm x 1.2mm
    • 11mm galvanised – 11mm x 1.2mm
    • 13mm galvanised – 13mm x 1.4mm
    • 13hex / 14mm galvanised – 14mm x 1.6mm
    • 16mm galvanised – 16mm x 1.6mm
    • 20mm galvanised – 20mm x 2.0mm
    articulated-feet-and-square-inserts-for-conveyors

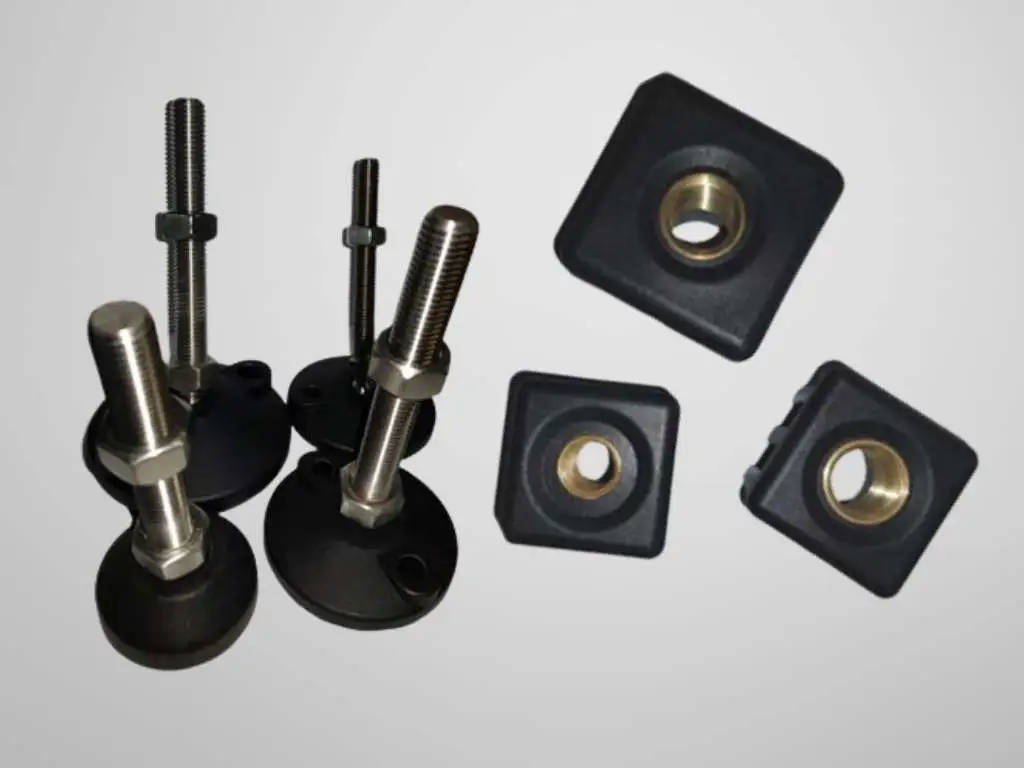

    Articulated Feet and Square Feet inserts

    Articulated Feet

    • 60diameter x M16 x 90mm long – anti-slip pad
    • 80diameter x M16 x 110mm long – anti-slip pad
    • 80diameter x M12 x 100mm long – anti-slip pad

    *All stems stainless steel.
    Mounting holes on 80dia and 100dia

    Square Tube Inserts

  • 38x38x2 Tube – M12
  • 40x40x1.5 Tube – M16
  • 40x40x2.0 Tube – M16
  • 50x50x1.5 Tube – M16
  • 50x50x2.0 Tube – M16

    • *Inserts Brass

    conveyor-handles-and-hinges-and-locking-collars

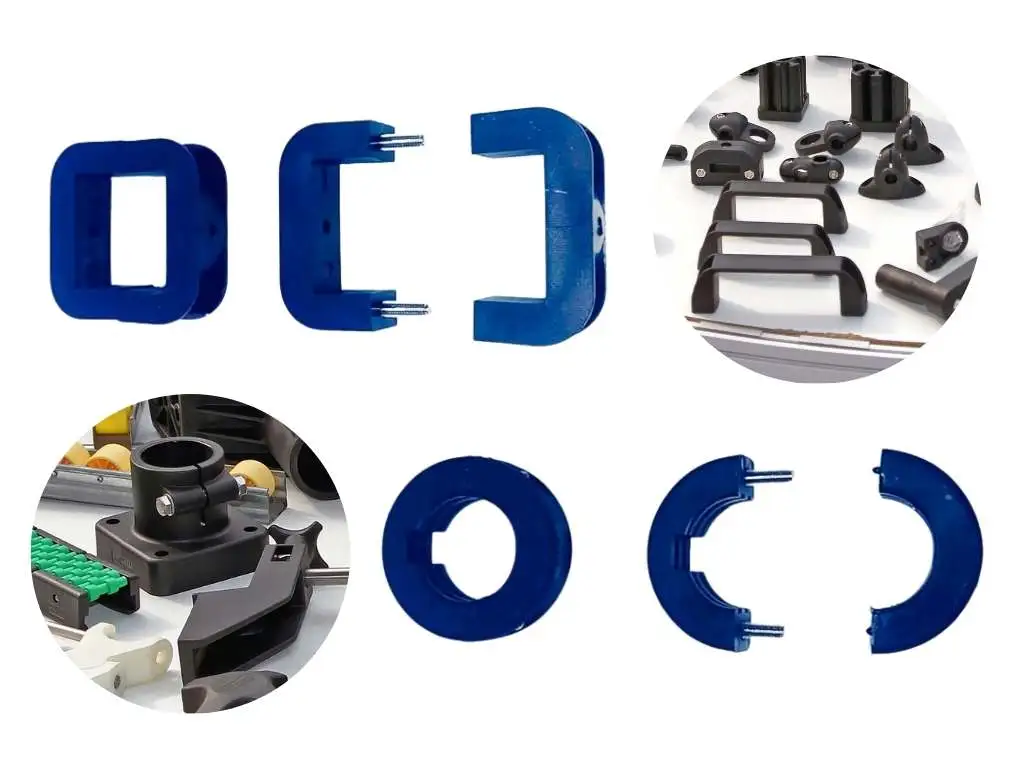

    Handles / Hinges and Locking Collars

    Handles

    • 25dia – 25,4 x 1,2mm tube 8mm bore
    • 32dia – 32,1 x 1,2mm tube 8mm bore

    Hinges

    • 38dia – 38,1 x 1,2mm tube 11mm bore
    • 50dia – 50,8 x 1,6mm tube 11mm bore

    Round Locking Collars

  • 20 diameter
  • 25 diameter
  • 30 diameter
  • 35 diameter
  • 40 diameter with and without keyways
    • bottling-conveyor-components

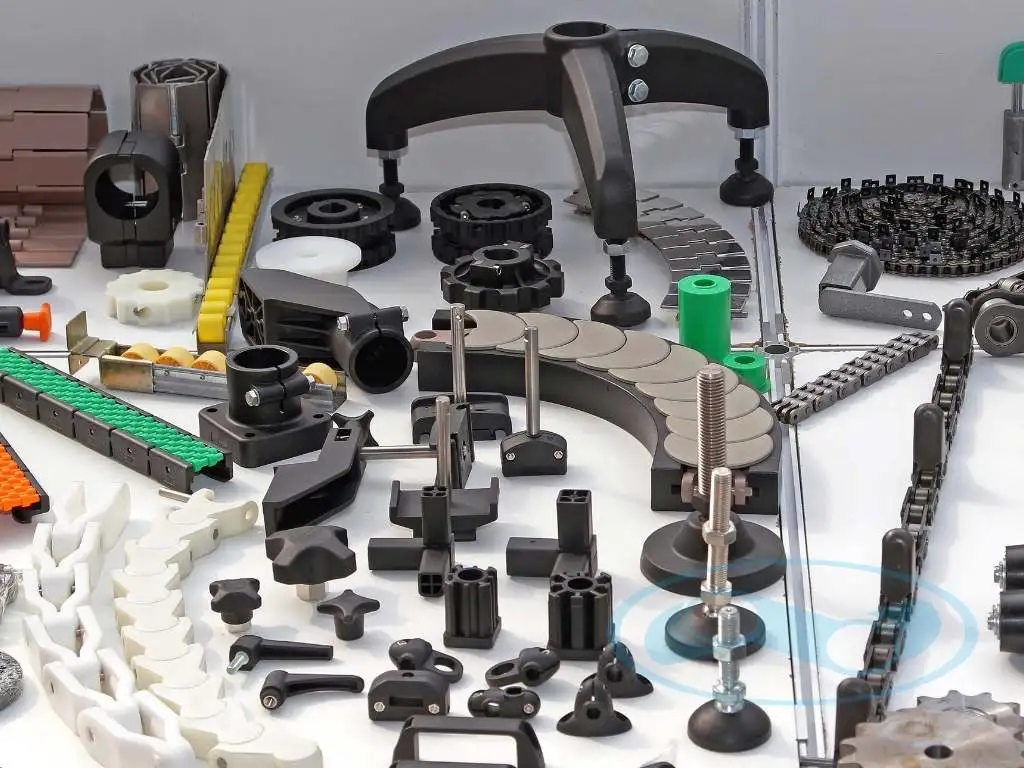

    Bottling Conveyor Components

    Guide Rail Bracket + Eye Bolt and Star Knob

  • For 12mm pin. M10 thread.

    • Bipod and Tripod

  • Fits 50.8 Pipe – no feet included

    • Support Heads

  • Side mounting, Square and Rectangular fit 50.8mm pipe

    • Clamps

  • Single and Double rail clamps 12mm
